What Is a Worm Gearbox?

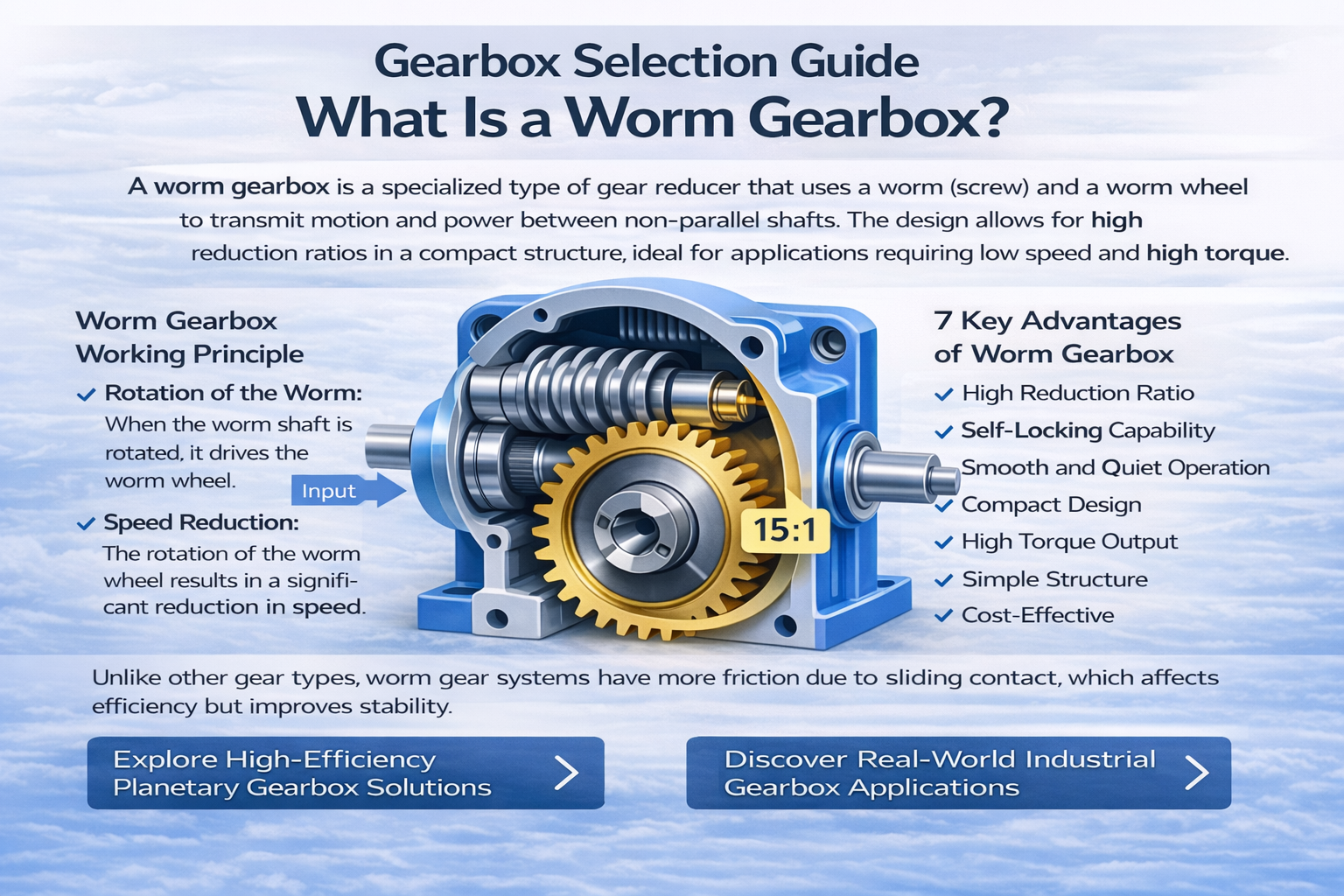

A worm gearbox is a specialized type of gear reducer that utilizes a worm (screw) and a worm wheel to transmit motion and power between non-parallel shafts. The design of this gearbox is unique because it allows for high reduction ratios in a compact form factor, making it ideal for applications that require low speeds and high torque.

The worm gearbox is widely used in various industries because it is highly efficient at reducing rotational speeds while simultaneously increasing torque. This makes it an essential component in many mechanical systems that demand precision, reliability, and high performance.

• Internal Link 1: You can explore different planetary gearbox solutions for high-efficiency applications (after “Factors Affecting Gearbox Efficiency” section).

Worm Gearbox Working Principle

The working principle of a worm gearbox is based on the sliding contact between the worm and the worm wheel. Here’s how it functions:

1. Rotation of the Worm: When the worm shaft is rotated, it drives the worm wheel.

2. Speed Reduction: The rotation of the worm wheel results in a significant reduction in speed, making the worm gearbox ideal for applications that require lower speeds.

3. Torque Increase: As the speed is reduced, the torque increases, which is perfect for handling heavy loads.

The main difference between worm gears and other types of gears is the increased friction due to the sliding contact between the worm and worm wheel. While this friction can slightly reduce the efficiency of the system, it also helps to increase the stability and reliability of the gearbox, especially in heavy-duty applications.

• Internal Link 2: Explore how a heavy-duty helical gearbox improves efficiency (in “How to Improve Gearbox Efficiency” section under “Choose the right gearbox type”).

7 Key Advantages of Worm Gearbox

1. High Reduction Ratio
   Worm gearboxes are capable of achieving very high reduction ratios in a single stage. This makes them ideal for applications requiring significant speed reduction without the need for multiple gear stages.

2. Self-Locking Capability
   One of the standout features of worm gearboxes is their self-locking ability. The output shaft is not easily able to drive the input shaft, meaning that if the input shaft is not powered, the output shaft cannot rotate. This makes them perfect for lifting equipment, such as cranes and hoists, where it is crucial that the load does not move unless the system is intentionally activated.

3. Smooth and Quiet Operation
   Worm gearboxes operate with minimal noise and vibration due to the nature of the sliding contact between the worm and the worm wheel. This makes them particularly desirable in applications where quiet and smooth operation is a priority, such as in elevators, conveyor systems, and packaging machines.

4. Compact Design
   Despite their ability to generate high torque, worm gear reducers are compact in size. This makes them ideal for tight spaces where a larger gearbox would not fit, such as in small machinery or agricultural equipment.

5. High Torque Output
   Worm gearboxes can deliver substantial torque in a relatively small size, making them ideal for heavy-duty applications that require a high level of force without compromising space.

6. Simple Structure
   The design of worm gearboxes is relatively simple compared to other types of gear systems. This simplicity allows for easier installation and maintenance, saving time and money over the life of the system.

7. Cost-Effective
   Worm gearboxes are generally more economical than planetary gearboxes or helical gearboxes, making them a budget-friendly choice for many industries. This is especially true for applications where high efficiency is not the top priority, and other factors such as size and self-locking features are more important.

Common Applications of Worm Gearbox

Worm gearboxes are used across a wide range of industrial applications, including:

• Conveyor Systems: To reduce speed while increasing torque to move materials.

• Lifting Equipment: Such as cranes, hoists, and winches, where the self-locking feature is crucial.

• Elevators and Hoists: To reduce speed while handling heavy loads.

• Packaging Machines: To control the movement and positioning of products in packaging lines.

• Agricultural Machinery: In applications like plows and harvesters where high torque is needed in a compact form.

• Gate and Valve Control Systems: To ensure reliable control of valves and gates in various industrial systems.

In all these scenarios, worm gearboxes provide a stable, reliable, and efficient solution that ensures the system functions properly under load.

• Internal Link 3: You can explore real industrial gearbox application cases (at the end of “Industrial Applications of High-Efficiency Gearboxes”).

Worm Gearbox vs Other Gearboxes

Here’s how worm gearboxes compare to other common types of gearboxes in terms of efficiency, torque, and size:

Worm gearboxes are especially favored when self-locking capability and high reduction ratios are needed. They are particularly suitable for applications where smooth, quiet operation in a compact design is a priority.

How to Choose a Worm Gearbox

When selecting a worm gearbox for your application, consider the following factors:

• Torque Requirements: Ensure that the gearbox can handle the torque needed for your specific application.

• Speed Reduction Ratio: Choose a gearbox that provides the required reduction in speed for your system.

• Efficiency Needs: If energy efficiency is crucial, consider the trade-offs between high torque and friction.

• Installation Space: Make sure the gearbox fits within the available installation space.

• Operating Environment: Consider factors like temperature, dust, moisture, and the need for lubrication in your operational environment.

By taking these factors into account, you can ensure the selection of a worm gearbox that meets both your performance and longevity expectations.

• Internal Link 4: Check out these industrial gearbox maintenance tips to improve service life (just before “Conclusion” section).

Conclusion

Worm gearboxes are a highly versatile and efficient solution for many industrial applications. Their ability to provide a high reduction ratio, self-locking capabilities, and compact design makes them a popular choice for systems requiring high torque in a small form factor. Whether you’re designing a conveyor system, lifting equipment, or agricultural machinery, worm gearboxes are sure to provide the reliability and performance you need.
